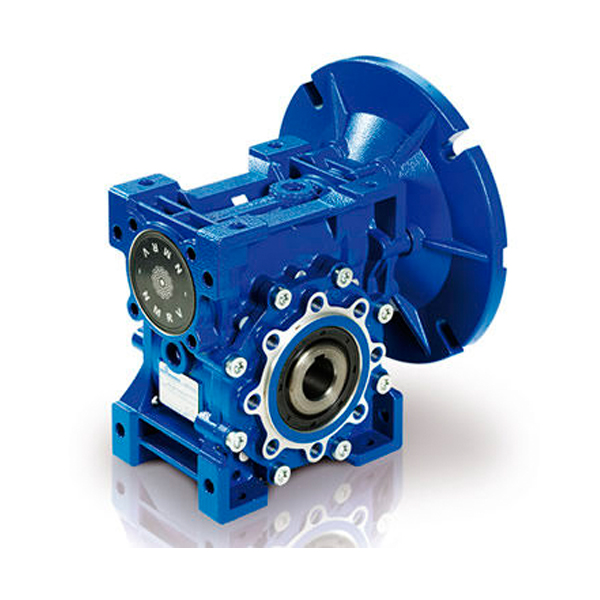

Motovario Motor Ready Worm Units supplied with or without Output Shaft, Flange or Torque arm.
Key Features:
NMRV – Sizes: 025-030-040-050-130-150.
NMRVpower – Sizes: 063-075-090-110.
Available with motor coupling, input shaft and torque limiter.
Power up to 15 kW.
Max torque 1.550 Nm and admissible radial loads max 16.500 N.
Ases up to 110 in die-cast aluminum alloy and over130 in cast iron.
Aluminumnits are supplied complete with synthetic oil which allows universal position mounting.
Worm wheel: bronze Cu Sn12 Ni2 (UNI7013-10.
Ground worm profile ZI (UNI4760).
Size 030 and over are painted with RAL 5010 blue epoxy-polyester powder in according to DIN 1843.
PC, pre-stage reduction units available for motor power up to 2,2kW and size up to 090.
NMRV-HW – with helical unit.
NMRV-HW – reduction ratios between 22,8 e 1.083, max torque 1.100 Nm.
Worm gear reducers are available with different combinations.
Options: torque arm, output flange, output shaft kit, cover, double extension high speed shaft.
